product catalog

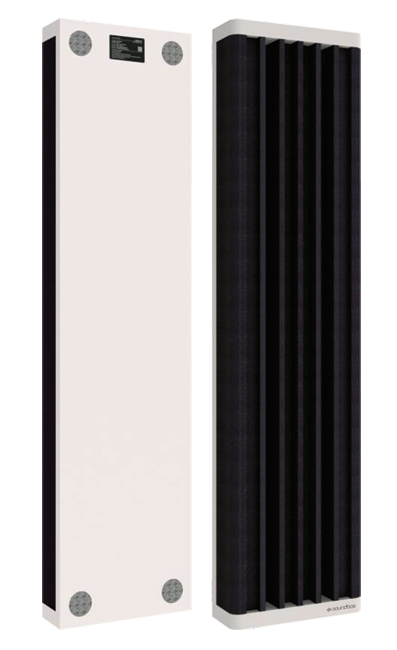

Name: DQ Low Frequency Absorber

Model: F300W

Base Material: Polymer/Polyether polyol fire retardant acoustic foam

Finish: E0 Eco-friendly water based paint

Eco-Friendly: Zero Formaldehyde emission; Up to E0 standard

Size: H1200 × W300 × D150mm

Weight: ≤1.6kg/pcs

Acoustic structure: High density Polyether polyol acoustic foam improves sound absorption coefficient. QRD array and in-coordinated back cavity structure can achieve certain low frequency absorption. A balanced acoustic environment will be obtained via suitable products combination.

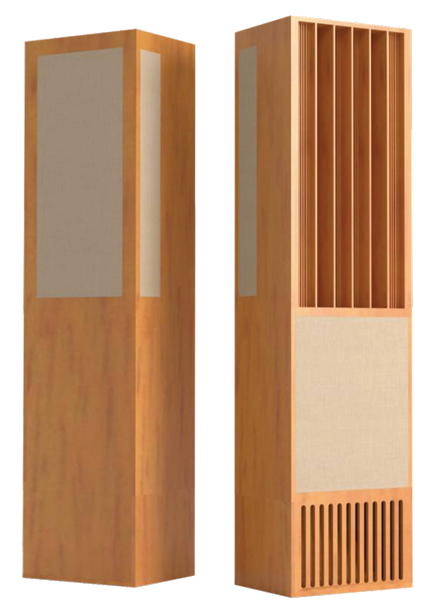

Name: Acoustic Baffle

Model: AQ1000S

Structure: Solid wood formation. Large version of QRD quadratic residue diffusion surface, three-step non-proportional cavity broadband sound absorption surface, labyrinth-type low-frequency trap with vibration damping base.

Finish: SF1200 Acoustical fabric for sound absorption; Diffusion side: Solid wood (Refer to color chart for details)

Eco-friendly: International E0 standard

Specification: H1600 × W600 × D150/350mm

Weight: 38kg

Optional: Movable roller accessories can be installed on the base
(purchased separately)

Application: Suits for controlling reverberation time and standing waves at the corner in small rooms, for example, listening rooms, studio and home theater. Moreover, it does well in sound absorption and diffusion when sound is being reflected.

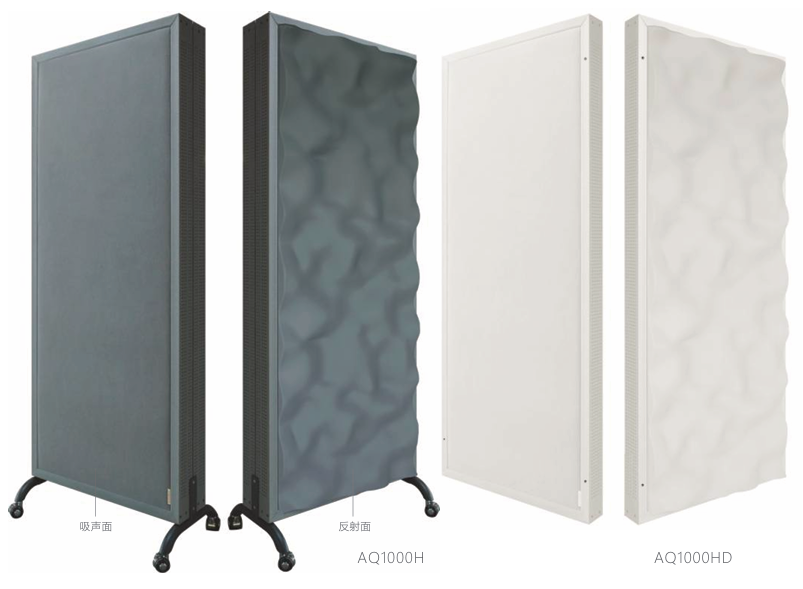

Name: Movable Acoustic Baffle

Model: AQ1000H / HD

Structure / Properties: A patented metal frame that is anti sound reflection, resonance and antioxidation treated.

Side A performs excellently in absorbing sound in all frequency.

Side B -- The MLS diffusing cloud is made by HIPS forming process.

Base Material: Unequal density ultra-microporous white glass fiber acoustic composite cotton, environmentally friendly and emission-free treatment.

Installation:
1000H -- Standard fixing system with wheels; Hidden rectangle fixed groove

1000HD -- Standard holes for horizontal or vertical hanging

Finish: 1)Acoustical fabric for sound absorption

2) Diffusion side: PU matte painting (Please refer to color chart for details)

Eco-Friendly: Up to international E0 standard

Flame retardation: Base material -- Grade A

Size: AQ1000H: H2100 × W800 × D200mm;

AQ1000HD: H2000 × W800 × D100mm

Weight: AQ1000H: 28kg; AQ1000HD: 15.5kg

Scope of Application:
AQ1000H -- A semi-enveloped acoustic absorbing shell for portable stage
AQ1000HD -- A hanging acoustic absorbing shell

Acoustic Properties:
Movable acoustic baffle helps to control long reverberation time, fluttering echo, parallel sound reflection and standing wave in medium frequency for churches, halls, multi-functional rooms, and studio. Meanwhile, it’s a quick outdoor acoustic shell solution.

Name: Chessfuser

Model: D64

Base Material: Rubber solid wood

Environmental Protection: Purely natural raw wood, natural and environment friendly

Finish: E0 standard environmental friendly PU finish paint

Features: D64 solid wood diffuser is a located sequence grating based on QRD theoretic formula calculations. Its groove depth and width enable it to have uniform diffuse reflections for the incident sound from different angles and all the directions to make human voices more agreeable and high frequencies more gorgeous like in a large hall.

Diffusion Frequency Range: 430Hz–861Hz (Maximum 2730Hz)

Scope of Application: Opera houses, music halls, places of leisure, private theaters, recording studios, HI-FI listening rooms, etc. with high end indoor sound quality requirements for building acoustic decoration

Specification: H600 × W600 × D100mm

Weight: 11.6kg/pcs

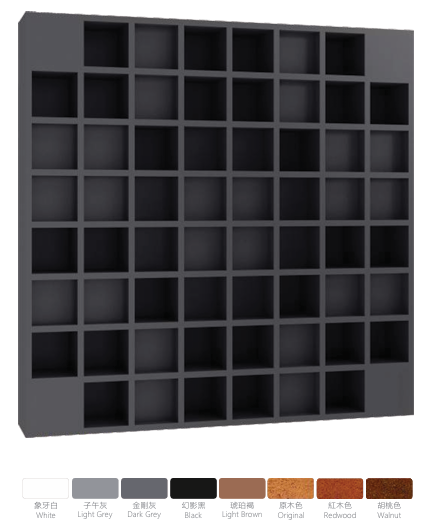

Name: Octofuser

Model: N8

Base Material: Rubber oak wood

Environmental Protection: Purely natural raw wood, natural and environment friendly

Finish: E0 standard environmental friendly PU finish paint

Features: N8 solid wood diffuser can be used to diffuse the sound energy, prevent echoes and standing waves to realize diffusion in all the directions, and improve the articulation of sound.

Diffusion Frequency Range: 413Hz–823Hz (Maximum 2324Hz)

Specification: H600 × W600 × D100mm

Weight: ≤11.5kg

Name: FUSEASER

Model: D80

Base Material: Rubber solid wood

Environmental Protection: Purely natural raw wood, natural and environment friendly

Finish: E0 standard environmental friendly PU finish paint

Main Features: D80 has significant diffusion effect. On condition of not increasing the reverberation time, it can deal with the problem of sound dryness in small spaces effectively and improve the fullness, articulation and sense of stereophony.

Common Specification: H1200 / 1500 / 1800 × W300 × D70mm

Weight: H1200 ≤10kg / H1500 ≤12.6kg / H1800 ≤15.1kg

Scope of Application: Flush mounted at high grade places e.g. music halls, home theaters, HI-FI listening rooms and recording rooms, and places requiring improvement of sound quality and articulation

Name: TRIFUSER

Model: D60

Base Material: Rubber solid wood

Environmental Protection: Purely natural raw wood, natural and environment friendly

Finish: E0 standard environmental friendly PU finish paint

Features: D60 solid wood diffuser is a located sequence grating based on QRD theoretic formula calculations. Its groove depth and width enable it to have uniform diffuse reflections for the incident sound from different angles and all the directions to make human voices more agreeable and high frequencies more gorgeous like in a large hall.

Scope of Application: Opera houses, music halls, private theaters, recording studios, HI-FI listening rooms, etc. with high end indoor sound quality requirements for building acoustic decoration

Diffusion Frequency Range: 413Hz–823Hz (Maximum 2324Hz)

Specification: H1800 × W600 × D100mm

Weight: ≤22.6kg/pcs

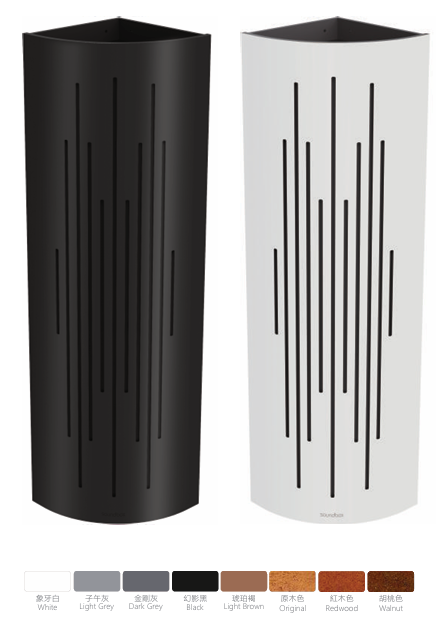

Name: ARC diffuser bass trap

Model: ARC300W

Base Material: Imported birch composite substrate

Finishing: Hot coated PP finishing

Environmental Rating: E0

Acoustic Properties: A 0° Curved diffusing surface using hot mold without glue with 20% different slot for absorbing broadband frequency. There’s a triangle low frequency absorbing cavity inside, filled with green acoustic material to absorb standing waves at 250Hz effectively. At the same time, this cavity scatters the beneficial sound energy gathered on the corner. That is a way to minimize the consumption of sound energy from acoustic system.

Application: Multifunctional hall, private cinema, recording studio, HI-FI room and other high-end space which needs to do acoustic decoration.

Scope of Application: Concert, Multi-functional hall, Private cinema, Studio and HI-FI room and other high end interior acoustic decoration

Size: H1200 / 1500 / 1800 × W300 × D300mm

Weight: H1200 ≤11.5kg / H1500 ≤14.4kg / H1800 ≤17kg

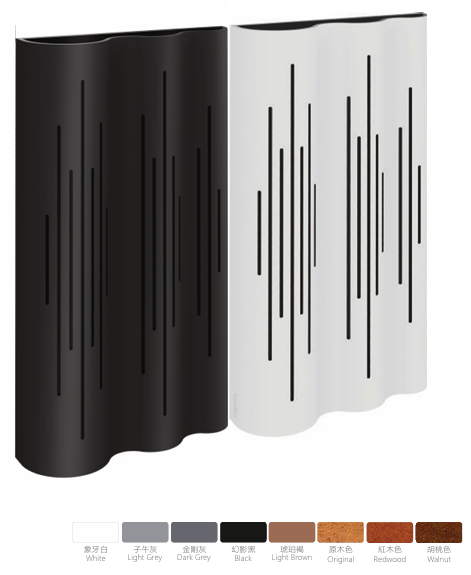

Name: Diffuser

Model: WAVE600

Base Material: Imported birch composite substrate

Finish: Heating compound PP veneer

Environmental Protection: E0

Features: Three wave-shaped diffusion with superimposed double-range bands. It has the function of sound absorption with 20% asymmetric design. It built-in low-frequency absorption cavities with three unequal volumes. To absorb 550–250Hz low frequency, it landfilled with eco-friendly acoustic material. The MLS diffuser horizontally scatters and balances the reflected sound, so as to get a more uniform sound environment without losing sound energy.

Scope of Application: Sound quality decoration in high-end indoor spaces such as concert halls, multi-function halls, private theaters, recording studios, HI-FI listening rooms, etc.

Size: H1800 / 1500 / 1200 / 600 × W600 × D160mm

Weight: H1800≤ 28kg / H1500≤ 23kg / H1200≤ 19kg / H600≤ 9.5kg

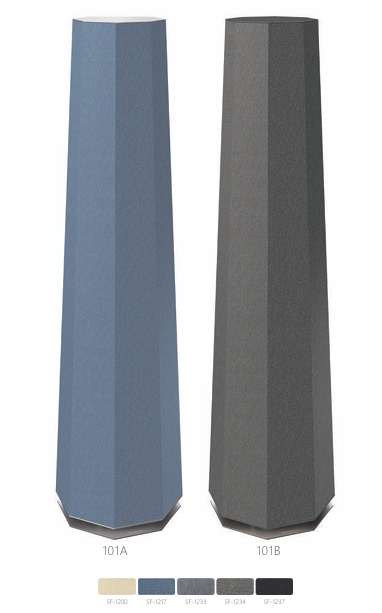

Name: Cylinder Bass Trap

Model:

EQ101A (Built-in Helmholtz resonator)
EQ101B (Without Built-in Helmholtz resonator)

Base Material: Eco-friendly composite acoustic wool of different density

Finish: SF-series, 14-series, fabric acoustic cloth surface finishing

Eco-Friendly: Zero Formaldehyde emission; Meet the international E0 standard

Size: H1500 × W400 × D250mm

Weight:
EQ101A≤12.6kg / EQ101B≤12.7kg

Acoustic Structure:
The eight-sided cone absorbing device and asymmetric volumetric structure can create a more advantageous broadband absorption cavity.

The cylindrical 360-degree sound-absorbing surface absorbs the margin low-frequency waves gathered at the corners.

Of course, the Soundbox engineers have prepared the “A” option with a built-in Helmholtz resonator for you who are looking for higher spatial sound indicators, which better absorbs the 63Hz that is not liked by sound recordists and burners, even if the presence of these frequencies is not of public interest.

The Cylinder Bass Trap acts on the absorption of low frequencies, and matches the EQ3.0 and other wall easer sound absorption panels perfectly, which is a perfect combination for building a high-quality sound environment in a small space.

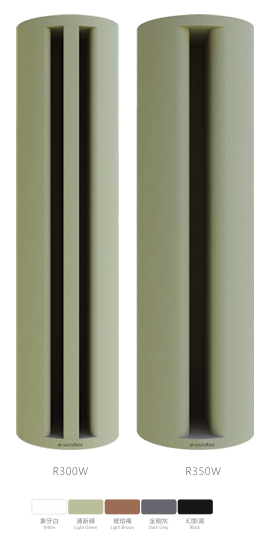

Name: DQ Cylinder Basstrap

Model: R300W / R350W

Base Material: Polymer, chemical compound with large molecules

Finish: E0 Eco-friendly water based paint

Eco-Friendly: Zero Formaldehyde emission; Up to E0 standard

Size:
R300W: φ300 × H1200mm
R350W: φ350 × H1200mm

Weight:
R300W: ≤2.8kg/pcs
R350W: ≤3.5kg/pcs

Acoustic Structure: Combining high tensile inorganic coating, they are formed by pouring Polymer materials which is with good low absorption character, decreasing weight and overcome traditional drawbacks.

Adopting the wise open resonance box model, it is the one of the effective approaches to capture 100–250Hz, taming most of problems caused by excess of low frequencies.

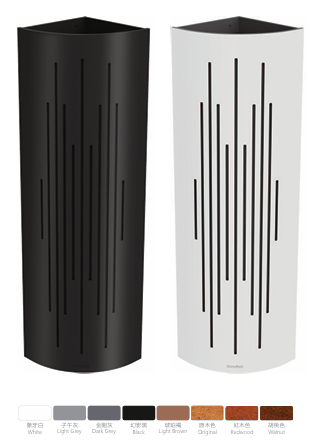

Name: ARC diffuser bass trap

Model: ARC300W

Base Material: Imported birch composite substrate

Finishing: Hot coated PP finishing

Environmental rating: E0

Acoustic Properties: A 0° Curved diffusing surface using hot mold without glue with 20% different slot for absorbing broadband frequency.

There’s a triangle low frequency absorbing cavity inside, filled with green acoustic material to absorb standing waves at 250Hz effectively. At the same time, this cavity scatters the beneficial sound energy gathered on the corner. That is a way to minimize the consumption of sound energy from acoustic system.

Application: Multifunctional hall, private cinema, recording studio, HIFI room and other high end space which needs to do acoustic decoration.

Scope of Application: Concert, Multi-functional hall, Private cinema, Studio and HIFI room and other high end interior acoustic decoration

Size: H1200 / 1500 / 1800 × W300 × D300mm

Weight: H1200 ≤11.5kg / H1500 ≤14.4kg / H1800 ≤17kg

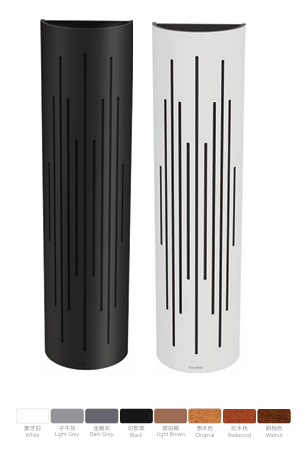

Name: ARC diffuser

Model: ARC300

Base Material: Imported birch composite substrate

Finishing: hot coated PP finishing

Environmental rating: E0

Feature: A 180° Curved diffusing surface using hot mold without glue with 20% different slot for absorbing broadband frequency.

There’s unbalanced low frequency absorbing cavity inside, filled with green acoustic material to absorb margin sound below 350Hz effectively. The sound reflected will be fully diffused in certain directions. In this way, we do not only save sound energy consumption, but also obtain a relatively balanced acoustic environment.

Application: multifunctional hall, private cinema, recording studio, HIFI room and other high end space which needs to do acoustic decoration.

Size: H1800 / 1500 / 1200 / 600 × W300 × D150mm

Weight: H1800 ≤14kg / H1500 ≤11.7kg / H1200 ≤9.23kg / H600 ≤5kg
